A cost-effective, reliable and safe solution for medium to high nitrogen needs.
By offering a wide range of cost-effective compressed air nitrogen generating systems, Badyar offers an ideal solution for users to produce their entire nitrogen gas needs, on-site and under their control.
Compared to traditional methods, providing an on-site nitrogen generator is extremely cost-effective, with a short payback time in many cases of less than twelve months. is.

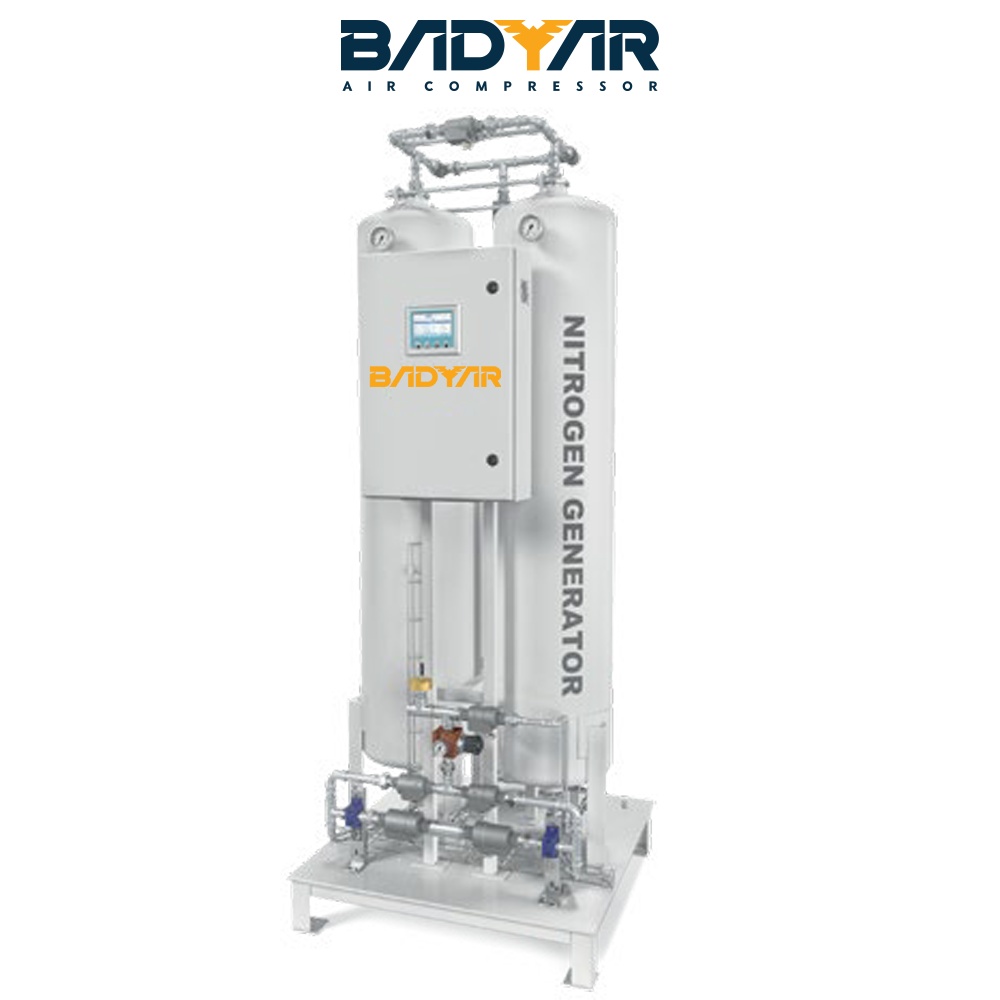

The air we breathe is approximately 78 percent nitrogen and 21 percent oxygen, with small amounts of other gases such as neon and hydrogen making up the remaining 1 percent. A nitrogen generator is capable of producing a continuous, uninterrupted stream of nitrogen gas from clean, dry compressed air. The device uses a carbon molecular sieve (CMS) bed in which oxygen and other rare gases are preferentially adsorbed while nitrogen is allowed to pass through.

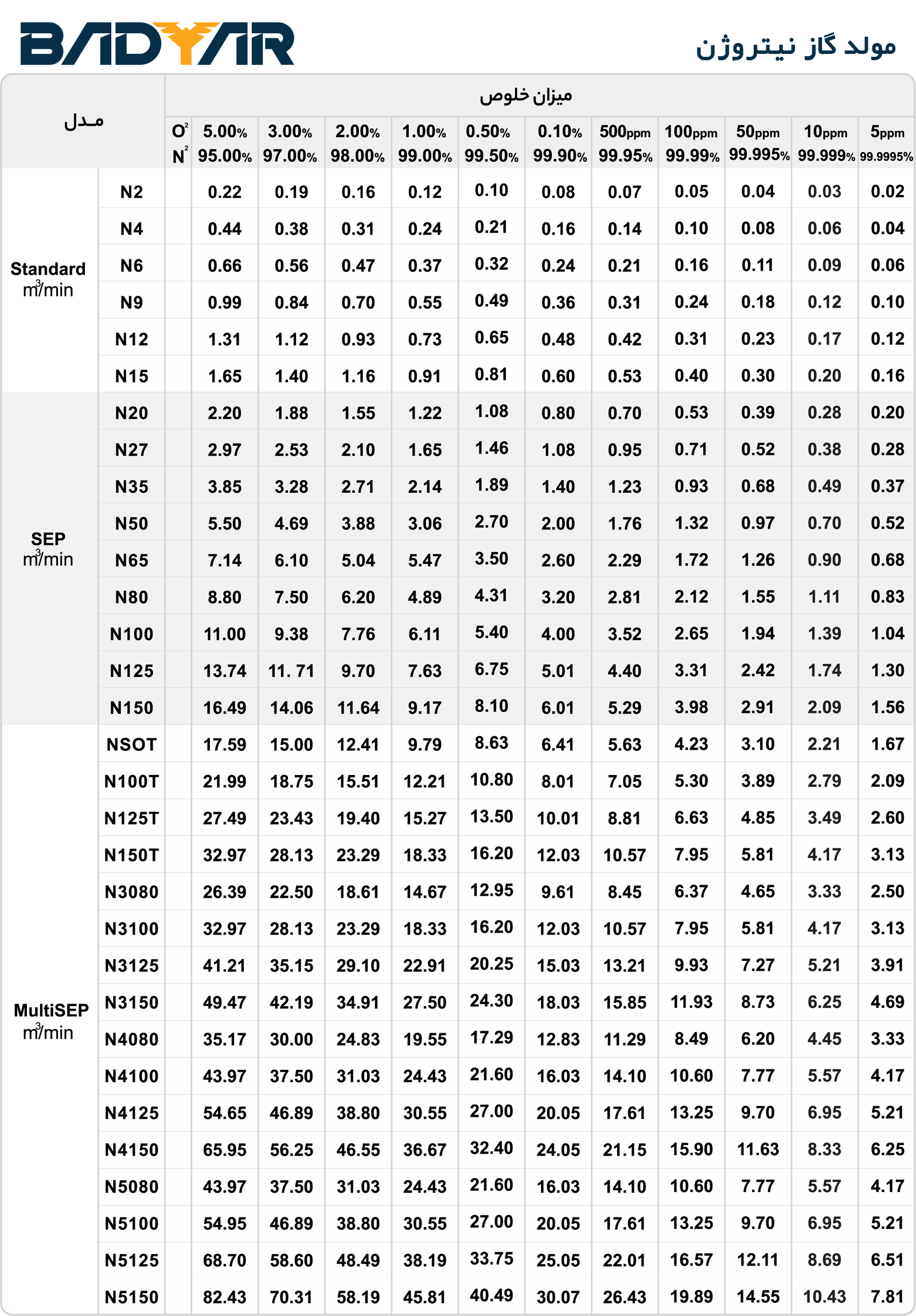

Capacities range from 1 to 1150 Nm3/h with purity from 95% to 99.9995%.
Badyar Standard generators are designed for 24/7 operation. The touch screen control has an easy-to-use interface with automatic start/stop function based on gas consumption. Our SEP and MultiSEP series have spring columns that prevent the molecular sieve from crushing.
The unique design provides high nitrogen flow rates with minimal footprint. Protecting the molecular sieve from moisture significantly reduces costs and extends the life of the generators.
Guaranteed performance
100% factory tested performance and efficiency
ASSURE Guarantee
Fast ROI
Significant cost savings over supplying nitrogen in cylinders or liquid form, with a ROI typically less than 24 months
Ecomode energy saving control reduces energy consumption during off-peak periods
Can be used in any application
Maximum designed operating pressure: 16 bar
Mass flow controller – ensures correct pressure and flow for the application
Internal oxygen analyzer – continuous measurement and assurance Gas Quality
Purity Assurance Valve – Automatically ensures that the gas meets the required specifications
Remote Monitoring – Ability to connect to dedicated remote management and control systems
Safe and cost-effective alternative
Nitrogen is used in a wide range of industrial applications, including atmospheric packaging of perishable food products. It is also used to prevent fires and explosions in chemical plants. Using high-quality compressed air to power generators ensures optimal performance and a long, trouble-free system life.
Badyar offers a complete range of systems that include everything you need to set up an on-site nitrogen generation system. Badyar air compressors and pretreatment packages including adsorption dryers and in-line filters ensure the highest quality air supply to the generators. Gas generation can be done from your existing air system and requires only minimal additional space.
Common methods of gas supply include high-pressure cylinders, small liquid tanks or bulk storage tanks. Using a Badiyar nitrogen generator makes the work environment much safer for employees and eliminates the safety hazards associated with traditional methods. Compared to external gas supply, on-site nitrogen production offers greater flexibility and has a significant impact on saving time and costs.
Benefits at a glance:
